• 27kW heating capacity, 92,128 BTU/hr output
• 240V single-phase power (requires dedicated breakers per install manual)
• Titanium heating element rated for saltwater pools and spas
• 316L stainless steel construction throughout the heat exchanger and housing
• Digital control panel with setpoint, water temp, GPM flow, and diagnostic display
• Solid state controls (no mechanical contactors)
• Flow sensor activation at 15 GPM minimum (replaces traditional pressure switch)
• Modulating power output for energy use that matches actual demand
• Built-in freeze protection at low inlet temperatures
• 2" NPT union connectors included for drop-in install
• Compact footprint and lightweight (~30 lbs) for single-person mounting
• Works as a primary heater or as a replacement for existing pool/spa heaters
• Suitable for indoor or outdoor installation

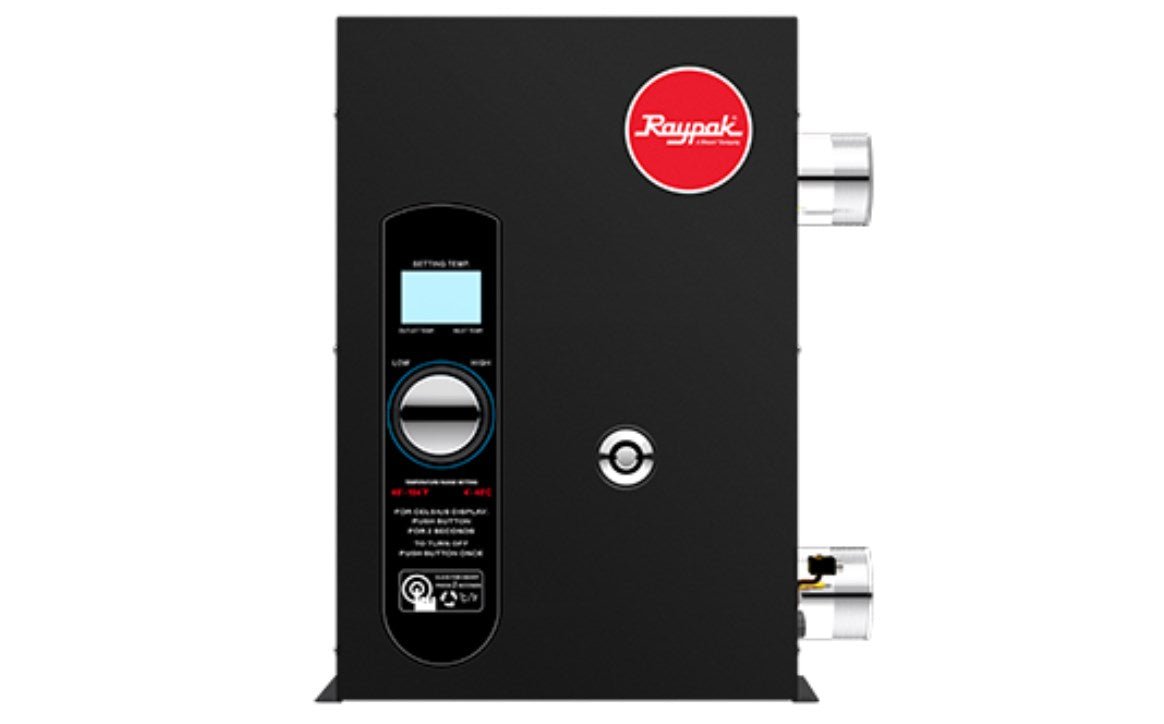

Brand: Raypak

Model: ELS-R-0027-1-Ti (formerly 017124)

Heating Capacity: 27 kW

BTU Output: 92,128 BTU/hr

Voltage: 240V

Phase: Single-phase (1-PH)

Minimum Flow Rate: 15 GPM

Heating Element: Titanium

Housing Material: 316L Stainless Steel

Plumbing Connections: 2" NPT unions (included)

Control Type: Digital with diagnostics

Activation: Flow sensor

Approximate Weight: 30 lbs

Application: Pool, spa, saltwater-compatible

Installation: Indoor or outdoor

Breaker Requirement: Per install manual (verify with electrician)

UPC: 840328459957

Will this heat my pool, or is it spa-only?
It does both. The 27kW is the largest E3T and is the one Raypak recommends when you're heating actual pool volume rather than just a spa. Heat-up time depends on pool size, starting water temp, and ambient conditions, so use Raypak's sizing chart for your gallonage before you commit.

Is this safe for saltwater pools?
Yes. The titanium element and 316L stainless steel housing are specifically built for saltwater environments. That's the whole reason to pay for an E3T over a cheaper electric unit.

Can it heat a pool and a spa at the same time?
No. It's a single-thermostat unit, so it heats one body of water at a time. If you have a pool/spa combo with a shared equipment pad, you'd switch between them on your valve setup.

What flow rate does it need to turn on?
15 GPM minimum. Below that, the flow sensor won't activate the heater, which is by design to protect the elements.

Do I need a special breaker setup?
Yes. A 27kW 240V single-phase heater pulls serious amperage. Reference the Raypak install manual for the exact breaker count and amperage, and have a licensed electrician handle the install. This is not a DIY wiring job.

How does it compare to a gas heater?
Electric heats slower but costs less to install (no gas line, no venting), runs quieter, and produces no combustion byproducts. For climates where you want extended-season heating rather than rapid heat-up from cold, electric makes sense. Gas is faster if you want to heat from 60°F to 85°F overnight.

Will this replace my existing pool heater?
Most likely yes. The union connectors are standard 2" NPT, and the compact size fits most existing equipment pads. Confirm your electrical service can handle the load before ordering.

What's the warranty?
Raypak's standard residential warranty applies. Terms vary by where you purchase, so check with the seller. Professional installation is typically required to keep warranty coverage intact.

Does it have freeze protection?
Yes. If inlet water drops below roughly 36°F with sufficient flow, the heater runs at reduced capacity to prevent freezing inside the unit.

Is it loud?
No. Solid state controls replace the clicking contactors found in older electric heaters, so operation is quiet.
