The FLEXFLO® Peristaltic Metering Pumps deliver high-performance chemical dosing with precision, durability, and advanced tube failure detection for reliable operation.
Couldn't load pickup availability
Product Details

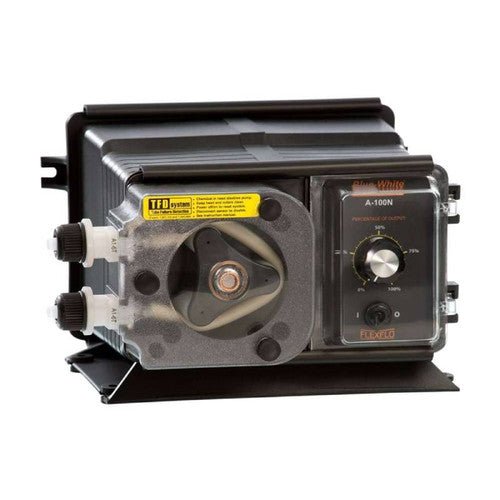

The Blue-White Industries FLEXFLO® A1N20A-6T and A1N10A-7T Peristaltic Metering Pumps are advanced, high-performance pumps designed for precise chemical metering in a variety of applications, including chlorinators and chemical feeders.
These pumps use peristaltic action, where rollers compress the tube in a progressive squeezing motion to push fluids with accuracy and efficiency. These pumps are particularly effective for metering chemicals that could clog conventional check valve systems, offering a reliable solution for such applications.
The A1N20A-6T has a 3/8" OD, 24 GPD capacity, 100 PSI pressure, and operates on 115V, 60Hz power, making it perfect for applications where high pressure and precision are required.
On the other hand, the A1N10A-7T features a 7/16" OD, 52.5 GPD capacity, 50 PSI pressure, also running on 115V, 60Hz, ideal for applications needing a higher flow rate but lower pressure.
AI Review Summary ✨
⭐⭐⭐⭐⭐
Customers rave about the robust construction and longevity of the FLEXFLO® pumps.
The analog timer makes controlling the dosing process straightforward and hassle-free.
The peristaltic action ensures precision and reliability, even with chemicals that could damage traditional pumps.
A popular choice for customers looking for durable, cost-effective chemical dosing solutions, with an impressive feature set at a competitive price.
Features
Type: Peristaltic Metering Pumps with Analog Timer
Pump Head & Tube: Superior Blue-White design
Pump Tube Failure Detection: Patented system prevents damage
Materials: Durable Polypropylene construction
Capacity (A1N20A-6T): 24 GPD
Capacity (A1N10A-7T): 52.5 GPD
Pressure: A1N20A-6T: 100 PSI, A1N10A-7T: 50 PSI
Power: 115V, 60Hz
Tubing Size: A1N20A-6T: 3/8" OD, A1N10A-7T: 7/16" OD
Application: Ideal for metering chemicals prone to clogging traditional systems
Timer: Analog timer for precise dosing control
Specifications
Brand: Blue-White Industries
Application: Pool
Shipping Dimensions: 14 x 12 x 9.5 inches
Commercial, Residential, or Professional: Commercial
Each Product Weight: 19.95 pounds
Flow Rate Max: 24 gal/day
Flow Rate Min: 24 gal/day
Frequency Rating (Hz): 60
Master Carton Quantity: 1
Material: Polypropylene or polypropene
Maximum Suction Lift: 30 feet
Minimum Sell Quantity: 1
Pallet Quantity: 1
Pressure Rating Max: 100 pounds per square inch
Pressure Rating Min: 100 pounds per square inch
RPM: 45
Standards Approvals: NSF Certified
Temperature Rating Max: 130°F
Temperature Rating Min: 130°F
Suction Size Outer Diameter: 0.375 inch
Frequently Asked Questions
Q: What is a peristaltic pump, and why is it useful for chemical metering? A: A peristaltic pump uses rollers to compress a tube in a progressive squeezing action, pushing liquids without the risk of clogging, making it ideal for chemicals that could damage traditional pumps or valves.
Q: What is the purpose of the tube failure detection system? A: The patented tube failure detection system alerts you when the pump tube is compromised, preventing further damage and ensuring the pump continues to operate efficiently.
Q: Can the FLEXFLO® pumps handle both high and low pressure applications? A: Yes, the FLEXFLO® pumps are available in different models with varying pressure ratings, such as the A1N20A-6T with 100 PSI and the A1N10A-7T with 50 PSI, providing flexibility for diverse applications.
